In-Rail-Bus Power Terminal
for installations with In-Rail-Bus system
Power terminal for installations with In-Rail-Bus system

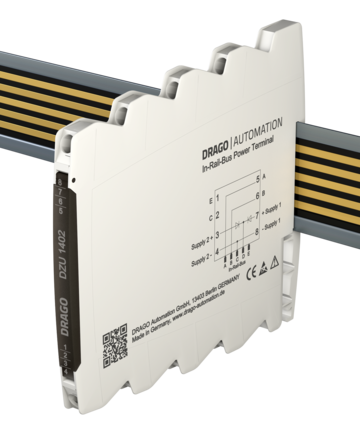

The 6.2 mm wide Power Terminal DZU 1402 are used for supplying the In-Rail-Bus DIN rail connector with supply voltage up to 32 V DC.
The Power Terminal DZU1402 with two separate and reverse polarity protected voltage inputs allow a redundant voltage supply and a maximum current of 3 A. The status of the power supply of both voltage inputs will be displayed each by a LED on front. A green LED lights up when there is supply voltage on the voltage input. A red LED indicates reversed polarity.
Up to 50 signal converters can be powered.
Product line
| Accessories | Order No. |
|---|---|
| Power terminal device for In-Rail-Bus, redundant | DZU 1402 |
Downloads / Links
Additional Documents
Technical Data
| Supply voltage | ≤ 32 V DC | |
| Input current | ≤ 3 A | |
| Recommended fuse | 3.15 A Slow-blow | |
| Drop voltage | ≤ 0.5 V | |
| Powered modules | max. 50 DRAGO modules of 6mm series | |
| Operating and fault indication | LED green / red | |
| Feeding | 2 redundant inputs, decoupled via diodes | |
| Approvals | UL (USA/Canada): UL 61010, Class I, Div. 2 ATEX / IECEx: Zone 2 (nA) |
|
| Connection | Captive plus-minus clamp screws Wire cross-section max. 2.5 mm² / AWG 14 Stripped length 6 to 8 mm / 0.28 in Screw terminal torque 0.8 Nm / 7 lbf in |
|
| Construction | 6.2 x 96 x 107 mm | |

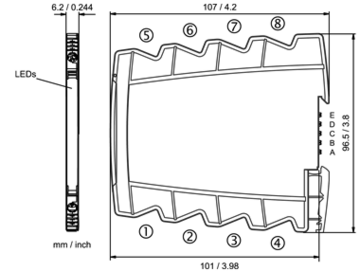

Dimensions
Terminal assignments
- 1 group message
- 2 GND (Supply –)
- 3 Supply 2 +
- 4 Supply –
- 5
- 6
- 7 Supply 1+
- 8 Supply –
