DR 44 P-XX
DR44P-XX

Temperature Transmitter DR 44

Temperature Measuring with Pt100-Sensors

The Temperature Transmitter DR 44 converts the sensor signal on input to temperature linear standard signal and makes it galvanic isolated available on output.

Cost optimized design
Economical temperature measuring for standard applications with Pt100 sensor with 4-wire connection
Only 60 mm installation depth, 11.2 mm wide
Can be installed in economical standard terminal boxes
Fixed ranges, easy to use
Ready to use without any settings or adjustments
Zero/Span compensation on front panel
for readjustment of sensor signal or measuring equipment
True 3-port separation
Protection against erroneous measurements due to parasitic voltages or ground loops
Protective Separation acc. to EN 61140
Protects service personnel and downstream devices against impermissibly high voltage
Unlimited use with 24 V AC/DC power supply
Universally applicable for all measurement and industrial applications
5 Years Warranty
Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender)

For applications where one measuring range only is used, the Temperature Transmitter DR 44 offers a cost-effective alternative.

A cross-connector for the auxiliary power supply ensures fast and easy installation. The slim housing with 11.2 mm width saves significant space on the DIN-rail. If required a measuring range compensation can be performed at the Zero/Scan potentiometers behind the front cover.

Analog signal processing guarantees precise measured values with short response times and outstanding signal reproduction at the output.

Protective Separation and the 24 V AC/DC power supply make the Temperature Transmitter DR 44 universally applicable for all measurement and industrial applications, as well as for building automation.

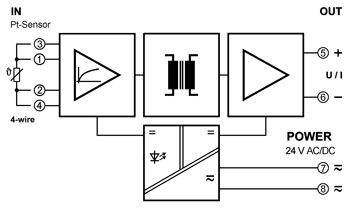

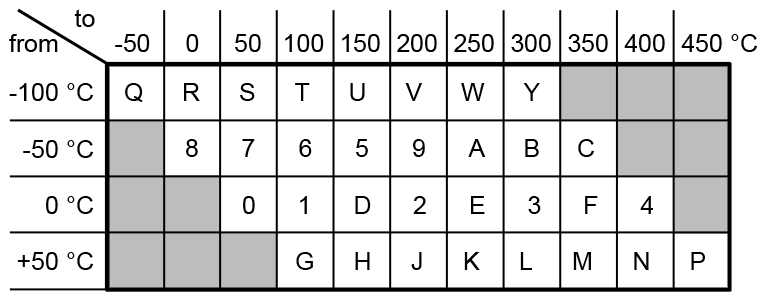

Product line

Product line DR 44
Devices	Sensor	Order No.
	Pt 100	DR 44 P -	X	X
Input	0...+50 °C		0
	0...+100 °C		1
	0...+150 °C		D
	0...+200 °C		2
	0...+250 °C		E
	0...+300 °C		3
	0...+350 °C		F
	0...+400 °C		4
	-50...0 °C		8
	-50...+50 °C		7
	-50...+100 °C		6
	-50...+150 °C		5
	-50...+200 °C		9
	-50...+250 °C		A
	-50...+300 °C		B
	-50...+350 °C		C
	-100...-50 °C		Q
	-100...0 °C		R
	-100...+50 °C		S
	-100...+100 °C		T
	-100...+150 °C		U
	-100...+200 °C		V
	-100...+250 °C		W
	-100...+300 °C		Y
	+50...+100°C		G
	+50...+150°C		H
	+50...+200°C		J
	+50...+250°C		K
	+50...+300°C		L
	+50...+350°C		M
	+50...+400°C		N
	+50...+450°C		P
Output	0 ... 20 mA			2
	4 ... 20 mA			4
	0 ... 5 V			5
	1 ... 5 V			8
	0 ... 10 V			6
	2 ... 10 V			7

Downloads / Links

Data Sheet

User Instructions (136.7 KiB)

Additional Documents

Request offer

Technical Data

Input

Sensor	Pt 100, 4-wire
Measuring range	Fixed ranges within -100 to +450 °C, see order information
Measuring error	< 0.1 K + 0.05 % of span
Sensor wire resistance	25 Ohm
Sensor current	1 mA

Output

Output signal	0 to 20 mA, 0 to 5 V, 0 to 10 V, see order information 4 to 20 mA, 1 to 5 V, 2 to 10 V
Load	Current output Voltage output	≤ 500 Ohm ≥ 2 kOhm
Residual ripple	< 10 mVrms

General Data

Transmission error	< 0.1 % full scale
Temperature coefficient 1)	< 0.025 %/K
Zero/Span compensation	± 3 %
Response time T₉₉	< 2 ms
Test voltage	3 kV AC, 50 Hz, 1 min., input against output against power supply
Working voltage 2) (Basic Insulation)	600 V AC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010-1
Protection against electrical shock 2)	Protective separation according to EN 61140 by reinforced insulation in accordance with EN61010-1 up to 300 V AC/DC for overvoltage category II and pollution degree 2 between all circuits.
Ambient temperature	Operation Transport and storage	–20 °C to +60 °C (–4 °F to +140 °F) –35 °C to +85 °C (–31 °F to +185 °F)
Power supply	24 V AC/DC, ± 15 %	AC: 48 to 62 Hz, approx. 2 VA DC: approx. 0.7 W
EMC 3)	EN 61326 -1
Construction	11.2 mm (0.44") housing, protection class: IP 20 mounting on 35 mm DIN rail acc. to EN 60715
Connection	Wire cross-section max. 2,5 mm²
Weight	Approx. 50 g

Average TC related to full scale value in specified operating temperature range, reference temperature 23 °C
For applications with high working voltages, ensure there is sufficient spacing or isolation from neighboring devices and protection against electric shocks.
Minor deviations possible during interference.
