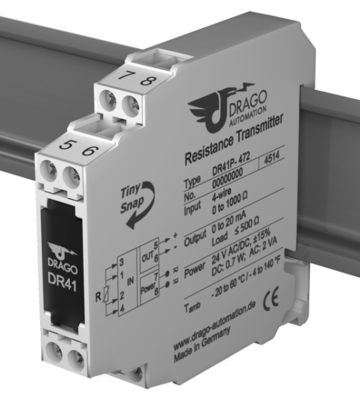

Resistance Transmitter DR 41
Measuring of Resistors with Fixed Setting
The Resistance Transmitter DR 41 converts the sensor resistance value to a standard signal and makes it galvanic isolated available on output.
- Cost optimized resistance measuring
in 2-, 3- and 4-wire sensor connection - Only 60 mm installation depth, 11.2 mm wide
Can be installed in economical standard terminal boxes - Fixed ranges, easy to use
Ready to use without any settings or adjustments - Zero/Span compensation on front panel
for readjustment of sensor and measuring equipment or line compensation at 2-wire sensor connection - True 3-port separation
Protection against erroneous measurements due to parasitic voltages or ground loops - Protective Separation acc. to EN 61140
Protects service personnel and downstream devices against impermissibly high voltage - Unlimited use with 24 V AC/DC power supply
Universally applicable for all measurement and industrial applications - 5 Years Warranty
Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender)
For applications where one measuring range only is used, the Resistance Transmitters DR 41 offers a cost-effective alternative.
A cross-connector for the auxiliary power supply ensures fast and easy installation. The slim housing with 11.2 mm width saves significant space on the DIN-rail. If required a measuring range compensation can be performed at the Zero/Scan potentiometers behind the front cover.
Analog signal processing guarantees precise measured values with short response times and outstanding signal reproduction at the output.
Protective Separation and the 24 V AC/DC power supply make the DR 41 universally applicable for all measurement and industrial applications, as well as for building automation.
Product line
| Devices | Sensor connection |
Order No. | ||
|---|---|---|---|---|
| 2-wire connection 3-wire connection 4-wire connection |
DR 41 P - 2 DR 41 P - 3 DR 41 P - 4 |
X X X |
X X X |
|
| Input | 0 ... 20 Ohm | 2 | ||
| 0 ... 50 Ohm | 3 | |||
| 0 ... 100 Ohm | 4 | |||
| 0 ... 200 Ohm | 5 | |||
| 0 ... 500 Ohm | 6 | |||
| 0 ... 1000 Ohm | 7 | |||
| 0 ... 2000 Ohm | 8 | |||
| 0 ... 5000 Ohm | 9 | |||
| 0 ... 10 kOhm | A | |||
| 0 ... 20 kOhm | B | |||
| 0 ... 50 kOhm | C | |||
| 0 ... 100 kOhm | D | |||
| 0 ... 200 kOhm | E | |||
| 0 ... 500 kOhm | F | |||
| 0 ... 1 MOhm | G | |||
| Output | 0 ... 20 mA | 2 | ||
| 4 ... 20 mA | 4 | |||
| 0 ... 5 V | 5 | |||
| 1 ... 5 V | 8 | |||
| 0 ... 10 V | 6 | |||
| 2 ... 10 V | 7 |
Downloads / Links
Additional Documents
Technical Data
Input
| Measuring range | Fixed ranges within 20 Ohm to 1 MOhm, see product line |
| Sensor connection | 2-wire, 3-wire, 4-wire sensor connection, see product line |
| Sensor wire resistance | < 25 Ohm / wire, maximum 5 % of final value at 2-wire connection |
| Sensor current | 0.1 μA to 5 mA, depends on measuring range |
Output
| Output signal | 0 to 20 mA, 0 to 5 V, 0 to 10 V, see product line 4 to 20 mA, 1 to 5 V, 2 to 10 V |
|
| Load | Current output Voltage output |
≤ 500 Ohm ≥ 2 kOhm |
| Residual ripple | < 10 mVrma | |
General Data
| Transmission error | < 0.2 % full scale | |
| Temperature coefficient 1) | < 0.025 %/K | |
| Zero/Span compensation | ± 5 % | |
| Response time T99 | < 2 ms | |
| Test voltage | 3 kV AC, 50 Hz, 1 min., input against output against power supply |
|
| Working voltage 2) (Basic Insulation) |
600 V AC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010-1 |
|
| Protection against electrical shock 2) |
Protective separation according to EN 61140 by reinforced insulation in accordance with EN61010-1 up to 300 V AC/DC for overvoltage category II and pollution degree 2 between all circuits. |
|
| Ambient temperature | Operation Transport and storage |
–20 °C to +60 °C (–4 °F to +140 °F) –35 °C to +85 °C (–31 °F to +185 °F) |
| Power supply | 24 V AC/DC, ± 15 % | AC: 48 to 62 Hz, approx. 2 VA DC: approx. 0.7 W |
| EMC 3) | EN 61326 -1 | |
| Construction | 11.2 mm (0.44") housing, protection class: IP 20 mounting on 35 mm DIN rail acc. to EN 60715 |
|
| Connection | Wire cross-section max. 2.5 mm² | |
| Weight | Approx. 50 g | |
- Average TC related to full scale value in specified operating temperature range, reference temperature 23 °C
- For applications with high working voltages, ensure there is sufficient spacing or isolation from neighboring devices and protection against electric shocks.
- Minor deviations possible during interference.
Block diagram
Dimensions
Terminal assignments
- 1 Input R
- 2 Input R
- 3 Input 3-wire
- 4 Input 4-wire
- 5 + Output
- 6 − Output
- 7 Power supply 24 V AC/DC
- 8 Power supply 24 V AC/DC
Subject to change!
